Hallux Limitus
Offloads the first MPJ, restores toe flexion, and slows progression to hallux rigidus — custom congruent to every patient's foot model.
Configure Root on FootID Pro →

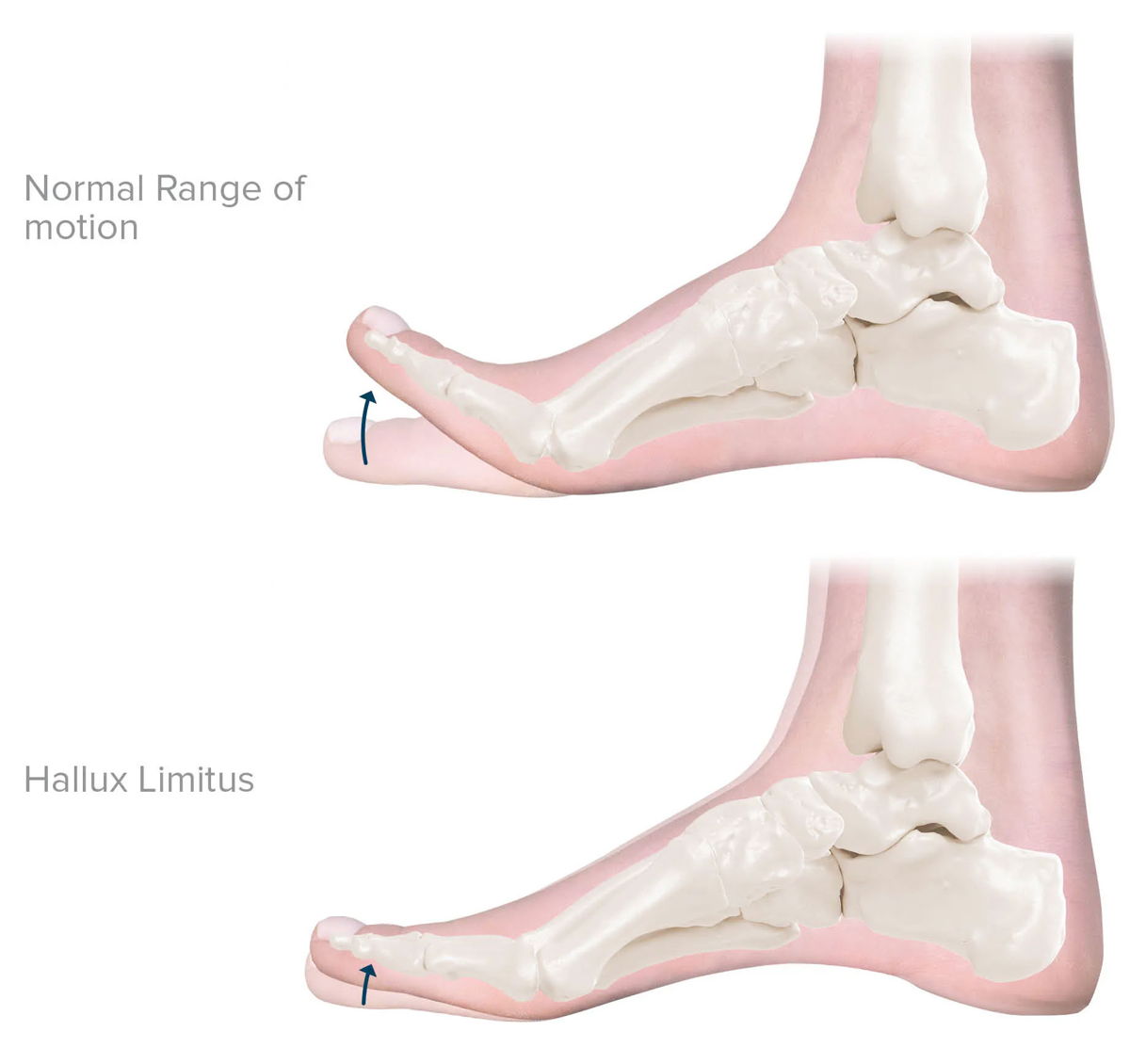

Hallux limitus begins as a movement problem. It ends as a structural one.
The first metatarsophalangeal joint drives the final phase of every step — propulsion. When dorsiflexion of the big toe is restricted during gait, the windlass mechanism fails, load shifts to compensating structures, and joint degeneration accelerates with every step.
The key insight: full passive range of motion off-weight-bearing does not rule out functional hallux limitus. The joint jams under load — and that's where the damage is done.
First MPJ jamming
Restricted dorsiflexion under load causes repetitive cartilage compression — the primary driver of degeneration and progression to hallux rigidus.
Windlass mechanism failure
When the first MPJ can't dorsiflex, the plantar fascia can't tension properly — reducing arch stability and propulsive efficiency.
Chain-reaction compensation
The body reroutes propulsion through adjacent structures — increasing load on the lesser metatarsals, lateral column, and knee.
The P4 frees the joint. Protects the toe.
Custom-fabricated to your patient's exact foot shape and clinical positioning.
Three interventions.
One precise solution.
The P4 doesn't compensate for restricted motion — it addresses the mechanical cause directly.
Dynamic wedge extension offloads the first MPJ
A 3mm dynamic wedge extension, built to the patient's hallux length from their foot model, supports the distal hallux and allows the toe to dorsiflex with reduced jamming — addressing the root cause of first MPJ compression from the first step.
Balance pad cutout removes peak pressure
A precise cutout directly under the first metatarsophalangeal joint removes pressure at the point of greatest compression — reducing cartilage loading with every step and slowing the degeneration that leads to hallux rigidus.
Congruent shape
Fabricated from the patient's exact foot model, the P4 distributes load correctly across the plantar surface, provides proprioceptive feedback, and changes the muscle firing sequence — supporting the entire kinetic chain while the joint recovers.
It's not just alignment. It's how your muscles fire.
The shape of what's under your foot determines how hundreds of muscles sequence during every gait cycle. Change that shape precisely — and you change the neuromuscular pattern that stabilises the body.
- Neurological feedback — congruent shape provides continuous proprioceptive input, improving muscle activation quality throughout gait.
- Muscle sequence in gait — hundreds of muscles fire differently based on what's under your foot. Root shape corrects this sequence, reducing caloric demand and improving efficiency.
- First MPJ offloading — the dynamic wedge and balance pad cutout genuinely reduce cartilage compression at the first MPJ, not just redistribute load. Each step applies less stress to the joint than without the device.
- Load redistribution — volume congruency distributes pressure evenly across the plantar surface, eliminating the concentrated first MPJ load that accelerates cartilage breakdown.
Shape is everything.
What separates Root from generic supports is the precise morphological shape captured from the patient's foot — held in the exact clinical position the clinician chose.
The Root orthotic matches the precise alignment the clinician held the foot in during scanning. This congruency supports optimal forefoot loading and redistributes load across the correct structures.
Modern Root
Width adjusted considering both borders. Default for all Root models.
Traditional Root
Justified to the lateral border. Medial width reduced. Used for specific clinical indications.
Modern Root shape process
- Forefoot balanced to rearfoot — the forefoot-to-rearfoot relationship is optimised as the first step in shape modification.
- Fat pad expanded ~3mm — expanding the fat pad in the heel ensures the device fills the calcaneal contour precisely.
- Arch lowered ~3mm — creates optimal heel-to-arch-to-met-head geometry. Not applied to foam impressions.
- Width tuned to both borders — medial and lateral widths are both considered, giving a foundation that matches the patient's actual foot width.
*Subtalar joint neutral is found by palpating the talus head against the navicular. The neutral position can present many joint-on-joint and bone-on-bone relationships and varies from person to person. An everted or inverted calcaneus may be a neutral position for an individual person. Biomechanical evaluation required.
How you hold the foot is what we build.
Root is not just the orthotic — it's the clinician's positioning, captured and preserved in the device. After scanning, FootID Pro asks the questions no other lab asks.
After every scan, we need to know:
- Was the subtalar joint held in neutral?
- Was the midtarsal joint maximally pronated — loading the 5th metatarsal head?
- Was the midtarsal joint maximally supinated — loading the 1st metatarsal head?
- Was the forefoot brought perpendicular to the rearfoot?
- Was a forefoot-to-rearfoot balance bisection achieved at 90° relative to the calcaneal bisection?
The positioning of those 19 joints in the foot is what gives us the shape.
CAD/CAM fabrication
- Scan or cast captured — clinician captures foot morphology via FootID Pro, holding the subtalar joint in the chosen clinical position.
- Shape modification applied — forefoot balanced to rearfoot, fat pad expanded, arch adjusted using Root's design.
- Technical staff review — every device reviewed against Traditional Root, Modern Root, Blake Inverted, or Accommodative principles.
- Fabricated to the shape — the polypropylene frame and EVA post are fabricated to match the submitted shape precisely.
See how the scan becomes an order.
Watch Kevin capture a foot, confirm the clinical position, and send a Root order — start to finish.
Variation converted to anatomy-match accuracy by impression & fabrication method
How closely each method preserves the patient’s intended foot shape. Scale: 0–100%, where 100% = optimal congruence.
Plaster bandage is wrapped around the foot in the clinician’s prescribed corrected position, setting into a precise negative of the foot’s contour.
The foot is pressed into a crushable foam box, leaving a negative impression of the plantar surface.
An existing positive model from the patient’s previous orthotics is reused — KevinRoot accepts models from any lab, with frame-contour variance as low as 1%.
A digital scanner such as FootID Pro captures the foot surface as a 3D model.
A fiberglass casting sock is applied over the foot and cures to capture its contour.
Pedobarography captures the patient’s plantar pressure distribution (static or dynamic) at 1:1 scale — used with arch height and shoe size to select a redimold positive model, not to capture true 3D contour.
A direct-molding system using prefabricated, size- and arch-based positive models (33 in total) rather than an individual foot impression.
Heated material is vacuum-pressed over a plaster positive model, drawing it intimately into every contour.
The frame is 3D printed by selective laser sintering (SLS) directly from the CAD-designed digital frame.
A positive model is CNC-milled (CAD/CAM) from an STS, 3D scan, plaster, or foam impression, then the frame is vacuum formed over it.
A CNC machine subtractively mills the frame from a block of polypropylene or EVA per the digital design.
*Redimold has no physical or digital foot impression — patient-foot-to-cast congruent accuracy is unavailable. Variation from positive model to frame is low.
How your foot shape becomes a precision frame.
The journey from clinical capture to finished orthotic frame is where Root's expertise lives. Every step preserves the shape and position the clinician chose.
- Foot impression captured — the clinician captures the foot using their preferred method. The fashion in which the foot is held directly affects the outcome of the Root Shape congruency against the foot.
- Positive model created — the impression becomes a physical plaster model or a digital CAD/CAM model via FitFoot360. Digital models are stored indefinitely.
- Root technicians modify the shape — using FitFoot360, technicians apply the Modern Root shape process. Every modification is reviewed against the clinical prescription.
- Orthotic frame fabricated — the frame is vacuum formed over the positive model or 3D printed, pressing the material precisely to the shape. Covers, postings, and modifications are then applied.
FitFoot360 Foot Model
- Root digital model stored indefinitely → recalled for future pairs
- Root technicians modify the digital shape in real-time: arch, heel, width, postings
- Vacuum formed over CAD/CAM positive model, direct milled or 3D printed Root Frame — replicable, consistent, precise
Real-time control over shape, function, and fit.
FitFoot360 gives Root's technicians complete digital control over every dimension of the orthotic frame — in real time. What once required physical carving and guesswork is now precise, repeatable, and stored permanently for every patient.
Digital positive model
Stored indefinitely. Future pairs, replacements, or modifications can be fabricated from the exact same shape without a new impression.
Real-time shape modification
Root technicians control arch, heel, width, and postings directly in the software.
Every parameter visible
Heel cup depth, frame reinforcement, ray cut-outs, flanges, and more are set per patient, not per template.
Plaster and foam digitisation
Physical models can be digitised for permanent storage. Note: digitising may not perfectly replicate the intimate contours achieved when vacuum forming directly over plaster.
Built to their spec. Built for their foot.
Every parameter of the P4 is set to the individual patient — material, posting, heel-cup depth, and covers are all chosen for their anatomy and gait, never an average.
Rigidity is selected per patient weight - so the shell flexes or holds exactly as much as that specific patient's gait demands.
Extrinsic post balanced forefoot to rearfoot — built into the positive model of the patient's foot, not added after. Congruent to their anatomy, not a generic post.
Shallower than standard — this device prioritizes forefoot function. The heel cup still captures the calcaneus precisely as cast from the patient's foot.
Trimmed to the patient's toe line, so contact and pressure distribution match their exact foot geometry.
Selected for shoe compatibility — keeps the device stable inside the shoe while the dynamic wedge system works above.
The defining feature of the P4 — built to the patient's hallux length from their foot model. Offloads the first MPJ and supports distal toe flexion congruent to their anatomy.
What changes when your foundation is corrected.
Addressing hallux limitus biomechanically creates cascading improvements across the forefoot and entire kinetic chain.
- Reduced first MPJ compression — the dynamic wedge and balance pad cutout directly reduce cartilage loading at the first metatarsophalangeal joint with every step.
- Slower progression to rigidus — reducing repetitive jamming limits the cartilage breakdown and osteophyte formation that drives hallux limitus toward hallux rigidus.
- Full kinetic chain relief — corrected rearfoot alignment reduces compensatory strain in the knee, hip, and lumbar spine.
- Preserved surgical window — early mechanical offloading keeps the joint functional and reducible longer — protecting the patient's candidacy for conservative treatment and delaying or avoiding cheilectomy.
Designed to free the joint. Protect the toe.
A 3mm dynamic wedge extension offloads the first MPJ while supporting the distal hallux — allowing the toe to dorsiflex with reduced jamming. A balance pad cutout directly under the first MPJ removes pressure at the point of greatest compression. Fabricated from a positive model of the patient's foot, the P4 reduces mechanical stress at the joint and limits the long-term degeneration that leads to hallux rigidus.
The full picture.
Everything you need to prescribe.
- Insufficient hallux dorsiflexion
- Poor windlass mechanism
- Functional hallux limitus (FnHL)
- Jamming of the 1st metatarsophalangeal joint
Recommended for
- Functional hallux limitus
- Jamming of the 1st MPJ
- Pre-surgical treatment prior to cheilectomy
Designed for patients with range of motion loss or limited movement in the big toe — this device offloads the first MPJ and supports distal hallux flexion to reduce jamming and slow joint degeneration.
A balance pad cutout directly under the first MPJ removes pressure at the point of greatest compression. A 3mm dynamic wedge extension supports the distal hallux, allowing the toe to dorsiflex with reduced mechanical stress. Fabricated from a positive model of the patient's foot, fully modifiable at the practitioner's discretion, stabilizing the foot for improved biomechanical control.
- L3000 (UCB)
- L3010 (longitudinal/metatarsal support)
- L3020 (arch support)
- L5000 (filler)
Final coding and billing are the provider's responsibility
Delivery Time
- Standard: 2 weeks
- Expedited: Available upon request

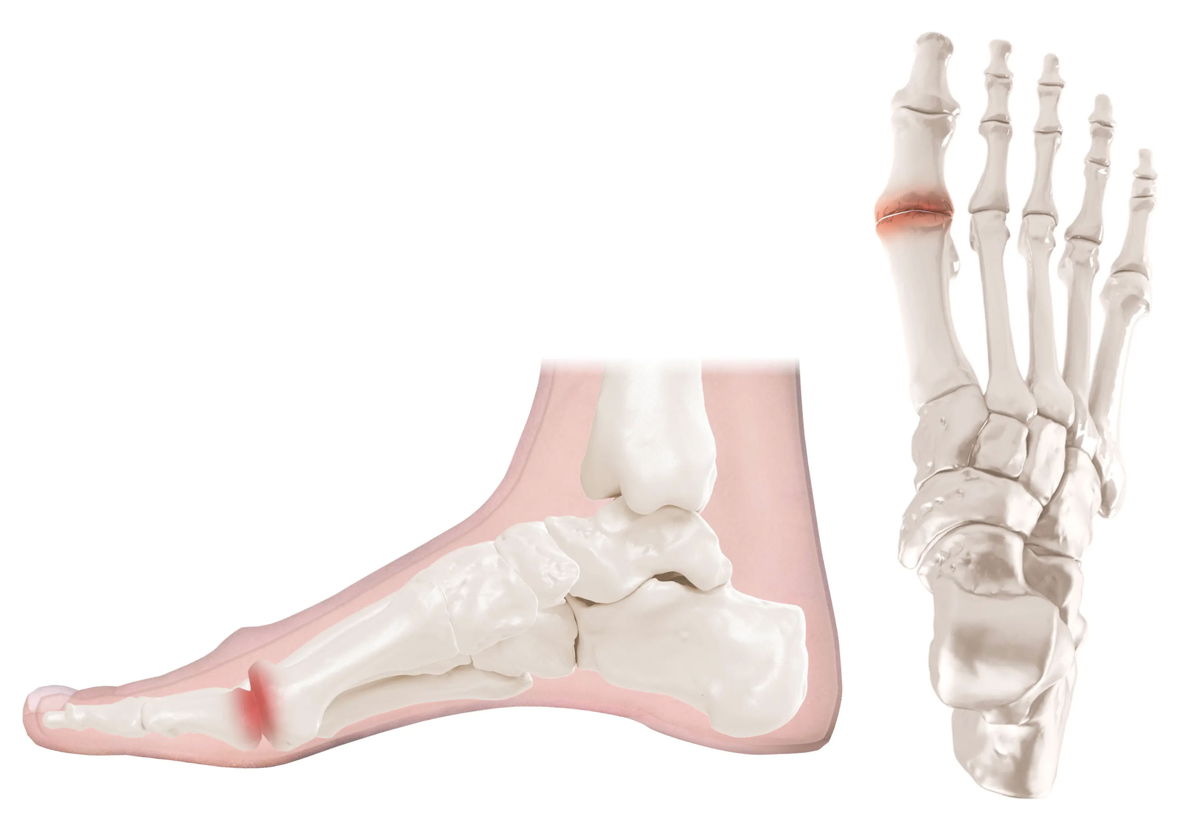

Hallux Limitus
The first metatarsophalangeal joint is the hinge that drives the final phase of every step — propulsion. When dorsiflexion of the big toe is restricted, the body compensates across the entire kinetic chain, shifting load to adjacent structures and altering gait mechanics. Left untreated, functional limitation becomes structural — hallux limitus progresses to hallux rigidus.
A Functional Problem With Structural Consequences
Hallux limitus begins as a movement restriction — the joint has adequate cartilage but insufficient range of motion during gait. The windlass mechanism fails to engage fully, reducing propulsive efficiency and increasing stress on the first MPJ with every step. Repetitive jamming accelerates cartilage breakdown and joint degeneration.
Functional Hallux Limitus — Full passive range of motion present off-weight-bearing, but dorsiflexion is restricted during gait. The joint jams under load. The P4's dynamic wedge directly addresses this — offloading the MPJ and facilitating toe flexion without surgical intervention.
Structural Hallux Limitus — Cartilage loss and osteophyte formation begin to limit both active and passive range of motion. Pain increases and joint space narrows. Conservative intervention remains viable in early structural stages.
Hallux Rigidus — End-stage degeneration with near-complete loss of joint motion. The P4 is most effective before this stage — as a conservative treatment and as a pre-surgical bridge prior to cheilectomy.
Diagnosis
Clinical assessment includes weight-bearing and non-weight-bearing range of motion testing to differentiate functional from structural limitus. X-ray under load assesses joint space, osteophyte formation, and the degree of degeneration. The difference between passive and active dorsiflexion is the key diagnostic indicator for functional hallux limitus.
Treatment Pathway
First-line treatment includes orthotics, NSAIDs, activity modification, and joint mobilization. Custom orthotics are most effective when introduced early — before functional restriction causes irreversible cartilage breakdown. If little progress is seen at 2–3 months, corticosteroid injection or further imaging is indicated. Cheilectomy becomes a consideration after 6 months without meaningful recovery.
The P4 is designed to be part of the first-line response — offloading the first MPJ from the first step, protecting the joint while it recovers.
The right device
for the right diagnosis.
P4 is indicated for functional hallux limitus, first MPJ dysfunction, and insufficient hallux dorsiflexion.
Prescribe with confidence across these conditions.
