Hallux Rigidus
Immobilizes the first ray, reduces first MPJ pressure, and minimizes painful dorsiflexion — custom congruent to every patient's foot model.
Configure Root on FootID Pro →
Hallux rigidus is what happens when joints are loaded wrong for too long.
The first metatarsophalangeal joint drives propulsion with every step. In hallux rigidus, arthritis and structural degeneration have destroyed enough cartilage that dorsiflexion becomes not just restricted — but painful. Every push-off becomes a source of discomfort, altering gait and loading adjacent structures throughout the lower extremity.

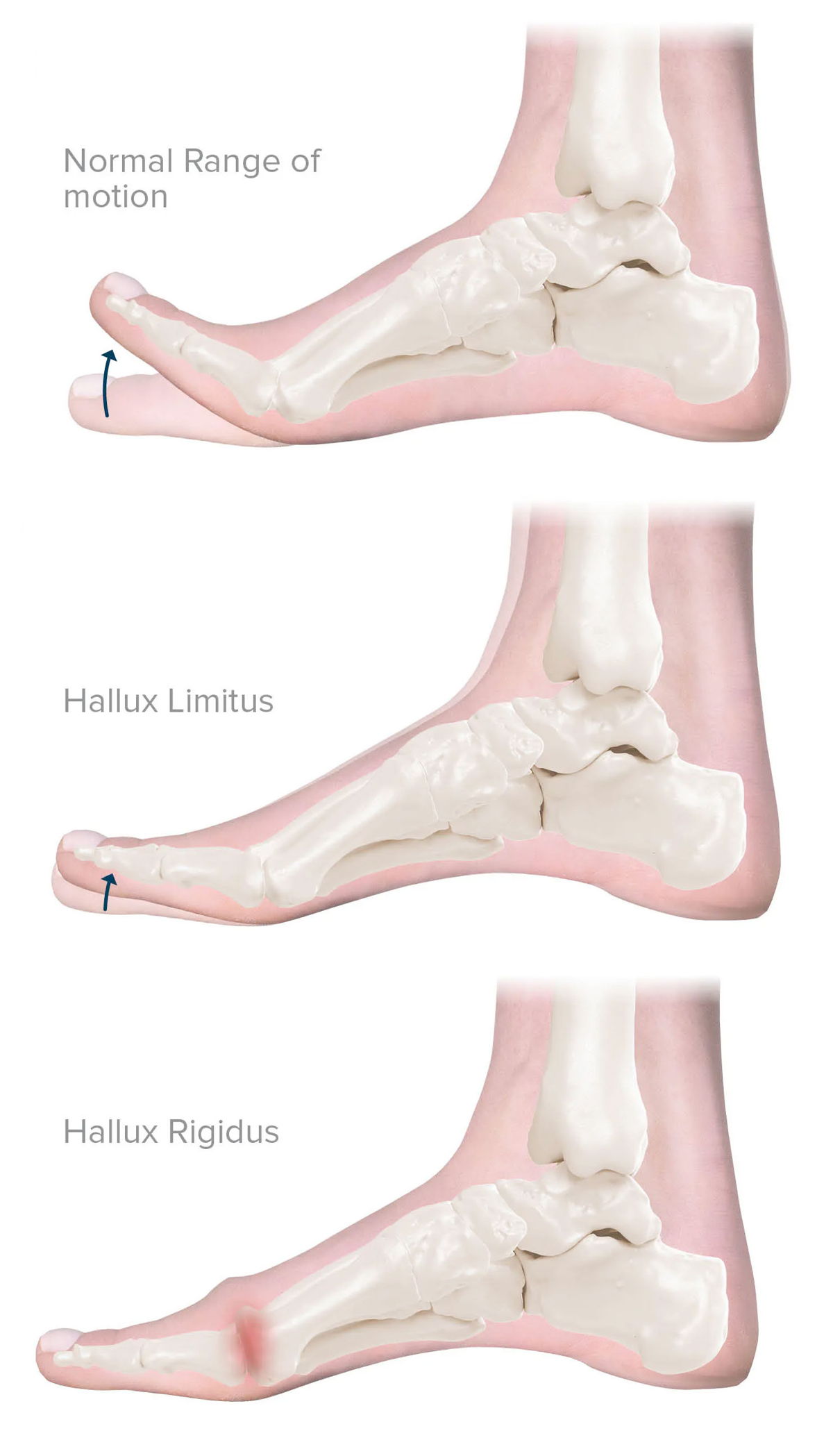

Unlike functional hallux limitus — where restriction occurs only under load — hallux rigidus is present at all times. The joint is structurally compromised, and it worsens with every unmanaged step.
Structural degeneration
Osteophyte formation and cartilage loss restrict both active and passive range of motion — unlike functional limitus, this cannot be unlocked off-weight-bearing. The joint is permanently compromised.
Pain at every push-off
Each step through propulsion triggers dorsiflexion at the first MPJ, now painful. The body compensates by supinating or pivoting — driving secondary pathology across the kinetic chain.
Progressive without intervention
Without immobilization and load reduction, the mechanical forces that drove degeneration continue — accelerating cartilage breakdown and narrowing the window for conservative treatment.

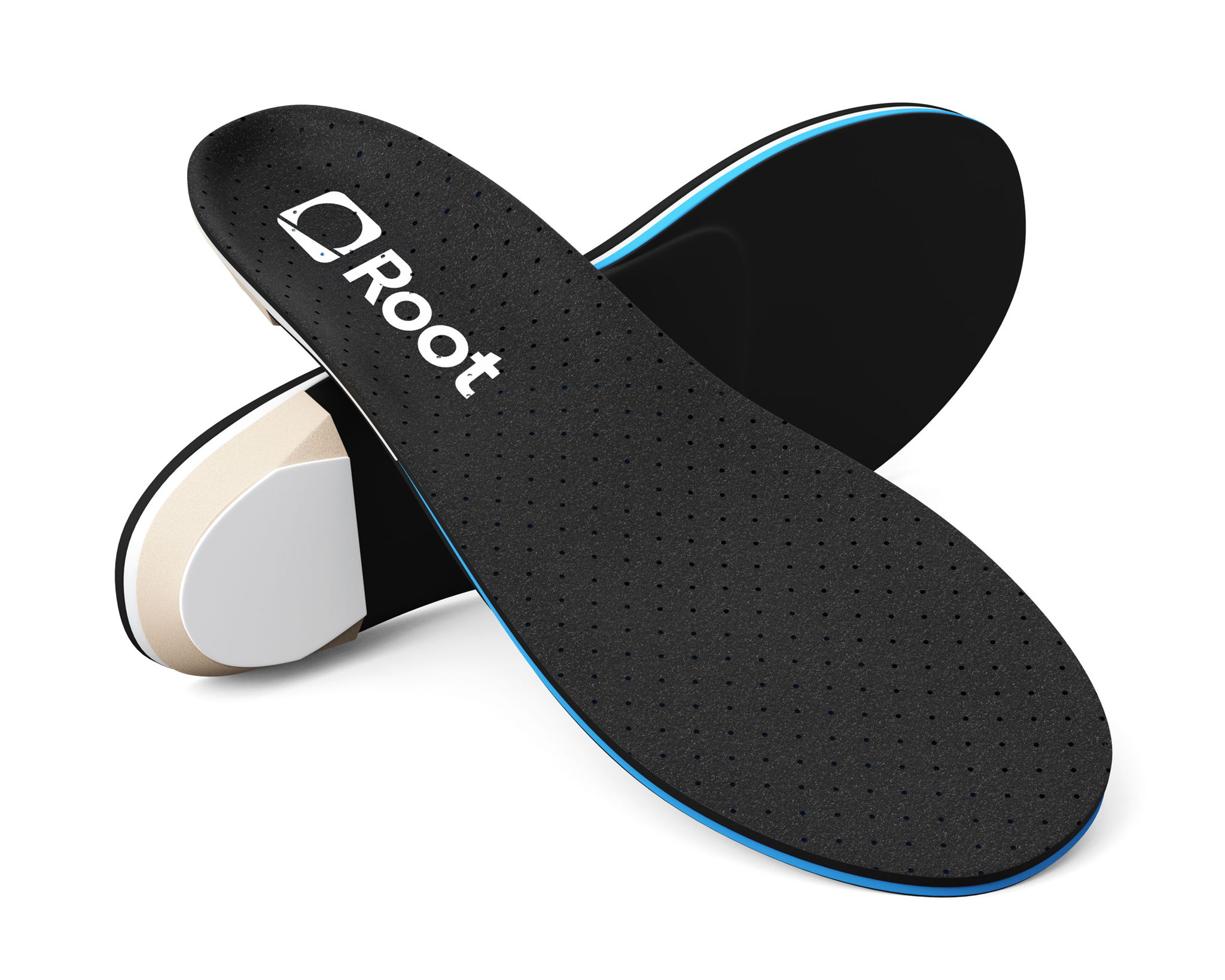

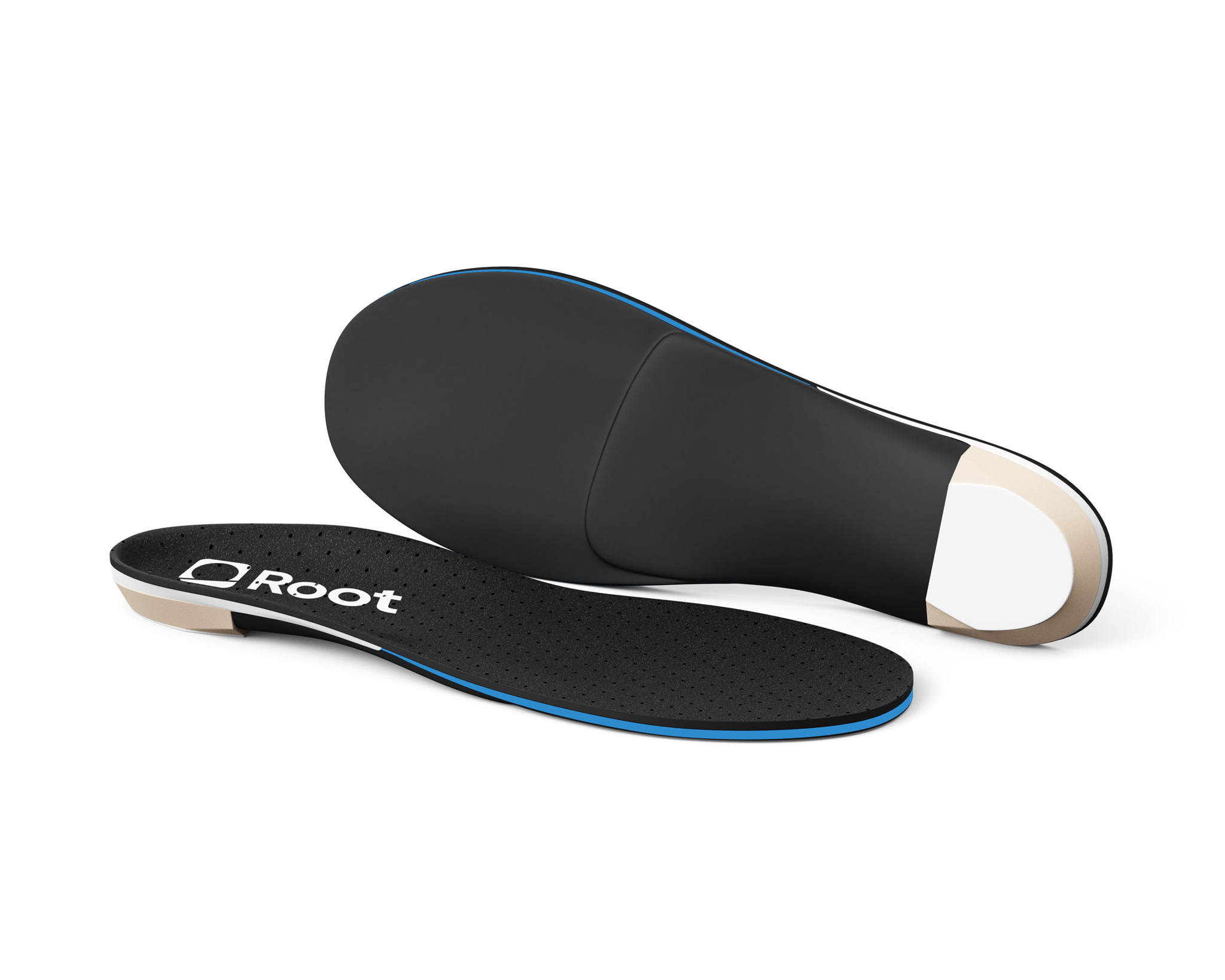

The P5 immobilizes the joint. Protects every step.
Morton's extension integrated at the shell level — custom congruent to the patient's exact foot geometry.
Three structural interventions.
One immobilizing solution.
The P5 doesn't manage around hallux rigidus — it eliminates the painful arc of motion from the moment of first contact.
Morton's extension immobilizes the first ray
A 3mm Morton's extension — built to the patient's hallux length from their foot model — greatly reduces movement of the entire first ray, eliminating the dorsiflexion at the first MPJ that has become painful due to arthritis. Can be integrated directly with the shell for maximum restriction.
Custom arch support reduces pronation and MPJ load
An extrinsic post balanced forefoot to rearfoot — built into the positive model of the patient's foot — decreases calcaneal eversion and midtarsal pronation, further reducing the ground reaction forces that drive compression at the first MPJ with every step.
Congruent shape distributes load and protects the chain
Fabricated from the patient's exact foot model, the P5 distributes plantar load correctly, provides continuous proprioceptive input, and corrects the compensatory muscle-firing patterns that develop when push-off pain alters normal propulsion mechanics.
Pain is a structural signal. The P5 answers it mechanically.
The shape of what's under the foot determines how load travels through the first ray at every push-off. The Morton's extension creates a lever that transfers force away from the arthritic joint — and precise congruent fit corrects the compensatory patterns that make things worse.
- Morton's extension mechanics — the extension extends under the entire first ray, creating a rigid lever that resists dorsiflexion. The patient's weight loads the extension rather than forcing the joint through its painful arc of motion.
- Pronation reduction — the extrinsic post decreases calcaneal eversion and midtarsal pronation, reducing the ground reaction forces that drive compression at the first MPJ with every step.
- True MPJ offloading — the P5 genuinely reduces first MPJ dorsiflexion force, not just redistributes it. Each step applies less painful stress to the joint than without the device.
- Compensatory pattern correction — precise congruent fit corrects the supinatory gait compensations that develop when push-off pain alters normal propulsion, protecting adjacent structures from secondary overload.
Shape is everything.
What separates Root from generic supports is the precise morphological shape captured from the patient's foot — held in the exact clinical position the clinician chose.
The Root orthotic matches the precise alignment the clinician held the foot in during scanning. This congruency supports optimal forefoot loading and redistributes load across the correct structures.
Modern Root
Width adjusted considering both borders. Default for all Root models.
Traditional Root
Justified to the lateral border. Medial width reduced. Used for specific clinical indications.
Modern Root shape process
- Forefoot balanced to rearfoot — the forefoot-to-rearfoot relationship is optimised as the first step in shape modification.
- Fat pad expanded ~3mm — expanding the fat pad in the heel ensures the device fills the calcaneal contour precisely.
- Arch lowered ~3mm — creates optimal heel-to-arch-to-met-head geometry. Not applied to foam impressions.
- Width tuned to both borders — medial and lateral widths are both considered, giving a foundation that matches the patient's actual foot width.
*Subtalar joint neutral is found by palpating the talus head against the navicular. The neutral position can present many joint-on-joint and bone-on-bone relationships and varies from person to person. An everted or inverted calcaneus may be a neutral position for an individual person. Biomechanical evaluation required.
How you hold the foot is what we build.
Root is not just the orthotic — it's the clinician's positioning, captured and preserved in the device. After scanning, FootID Pro asks the questions no other lab asks.
After every scan, we need to know:
- Was the subtalar joint held in neutral?
- Was the midtarsal joint maximally pronated — loading the 5th metatarsal head?
- Was the midtarsal joint maximally supinated — loading the 1st metatarsal head?
- Was the forefoot brought perpendicular to the rearfoot?
- Was a forefoot-to-rearfoot balance bisection achieved at 90° relative to the calcaneal bisection?
The positioning of those 19 joints in the foot is what gives us the shape.
CAD/CAM fabrication
- Scan or cast captured — clinician captures foot morphology via FootID Pro, holding the subtalar joint in the chosen clinical position.
- Shape modification applied — forefoot balanced to rearfoot, fat pad expanded, arch adjusted using Root's design.
- Technical staff review — every device reviewed against Traditional Root, Modern Root, Blake Inverted, or Accommodative principles.
- Fabricated to the shape — the polypropylene frame and EVA post are fabricated to match the submitted shape precisely.
See how the scan becomes an order.
Watch Kevin capture a foot, confirm the clinical position, and send a Root order — start to finish.
Variation converted to anatomy-match accuracy by impression & fabrication method
How closely each method preserves the patient’s intended foot shape. Scale: 0–100%, where 100% = optimal congruence.
Plaster bandage is wrapped around the foot in the clinician’s prescribed corrected position, setting into a precise negative of the foot’s contour.
The foot is pressed into a crushable foam box, leaving a negative impression of the plantar surface.
An existing positive model from the patient’s previous orthotics is reused — KevinRoot accepts models from any lab, with frame-contour variance as low as 1%.
A digital scanner such as FootID Pro captures the foot surface as a 3D model.
A fiberglass casting sock is applied over the foot and cures to capture its contour.
Pedobarography captures the patient’s plantar pressure distribution (static or dynamic) at 1:1 scale — used with arch height and shoe size to select a redimold positive model, not to capture true 3D contour.
A direct-molding system using prefabricated, size- and arch-based positive models (33 in total) rather than an individual foot impression.
Heated material is vacuum-pressed over a plaster positive model, drawing it intimately into every contour.
The frame is 3D printed by selective laser sintering (SLS) directly from the CAD-designed digital frame.
A positive model is CNC-milled (CAD/CAM) from an STS, 3D scan, plaster, or foam impression, then the frame is vacuum formed over it.
A CNC machine subtractively mills the frame from a block of polypropylene or EVA per the digital design.
*Redimold has no physical or digital foot impression — patient-foot-to-cast congruent accuracy is unavailable. Variation from positive model to frame is low.
How your foot shape becomes a precision frame.
The journey from clinical capture to finished orthotic frame is where Root's expertise lives. Every step preserves the shape and position the clinician chose.
- Foot impression captured — the clinician captures the foot using their preferred method. The fashion in which the foot is held directly affects the outcome of the Root Shape congruency against the foot.
- Positive model created — the impression becomes a physical plaster model or a digital CAD/CAM model via FitFoot360. Digital models are stored indefinitely.
- Root technicians modify the shape — using FitFoot360, technicians apply the Modern Root shape process. Every modification is reviewed against the clinical prescription.
- Orthotic frame fabricated — the frame is vacuum formed over the positive model or 3D printed, pressing the material precisely to the shape. Covers, postings, and modifications are then applied.
FitFoot360 Foot Model
- Root digital model stored indefinitely → recalled for future pairs
- Root technicians modify the digital shape in real-time: arch, heel, width, postings
- Vacuum formed over CAD/CAM positive model, direct milled or 3D printed Root Frame — replicable, consistent, precise
Real-time control over shape, function, and fit.
FitFoot360 gives Root's technicians complete digital control over every dimension of the orthotic frame — in real time. What once required physical carving and guesswork is now precise, repeatable, and stored permanently for every patient.
Digital positive model
Stored indefinitely. Future pairs, replacements, or modifications can be fabricated from the exact same shape without a new impression.
Real-time shape modification
Root technicians control arch, heel, width, and postings directly in the software.
Every parameter visible
Heel cup depth, frame reinforcement, ray cut-outs, flanges, and more are set per patient, not per template.
Plaster and foam digitisation
Physical models can be digitised for permanent storage. Note: digitising may not perfectly replicate the intimate contours achieved when vacuum forming directly over plaster.
Built to their spec. Built for their foot.

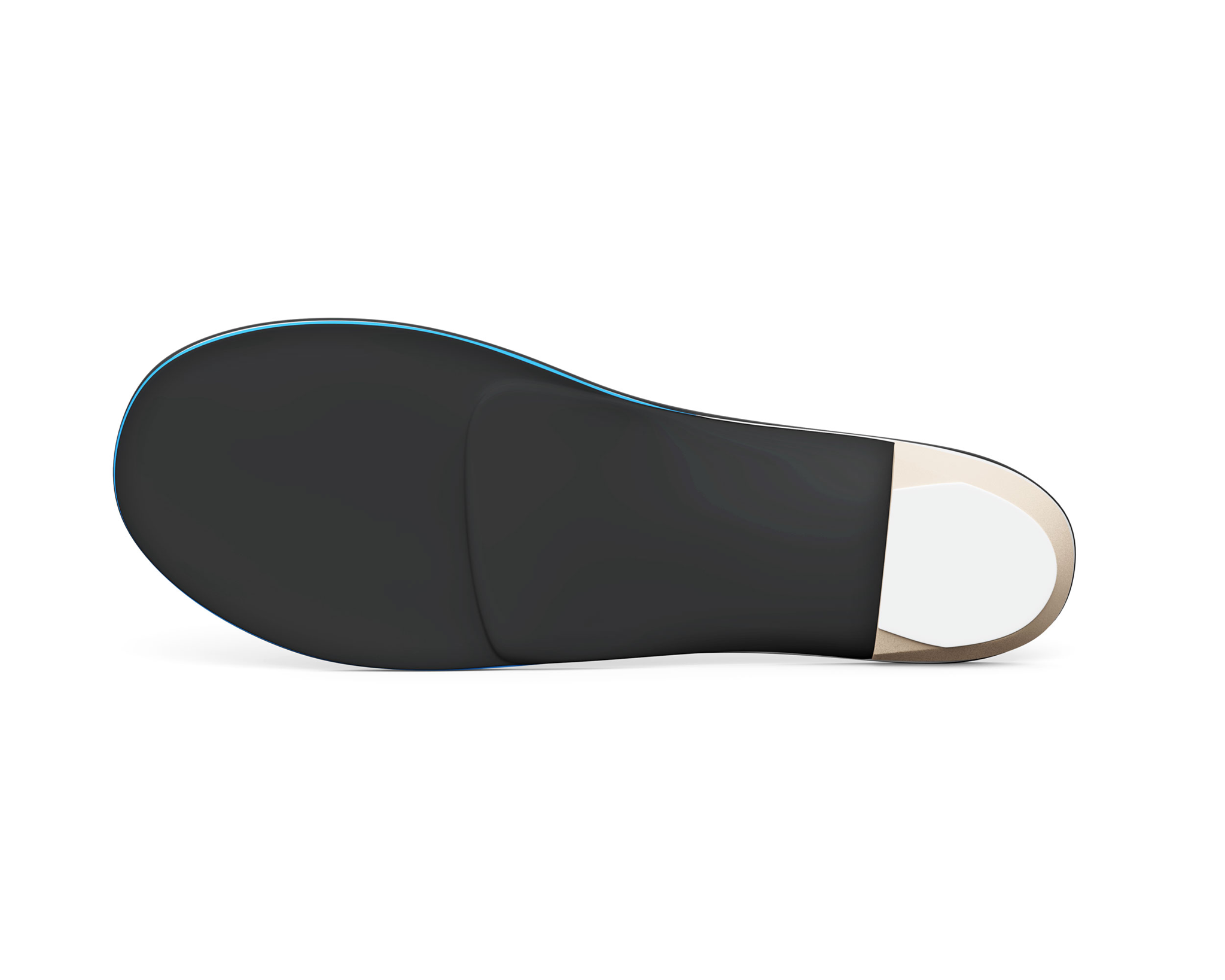

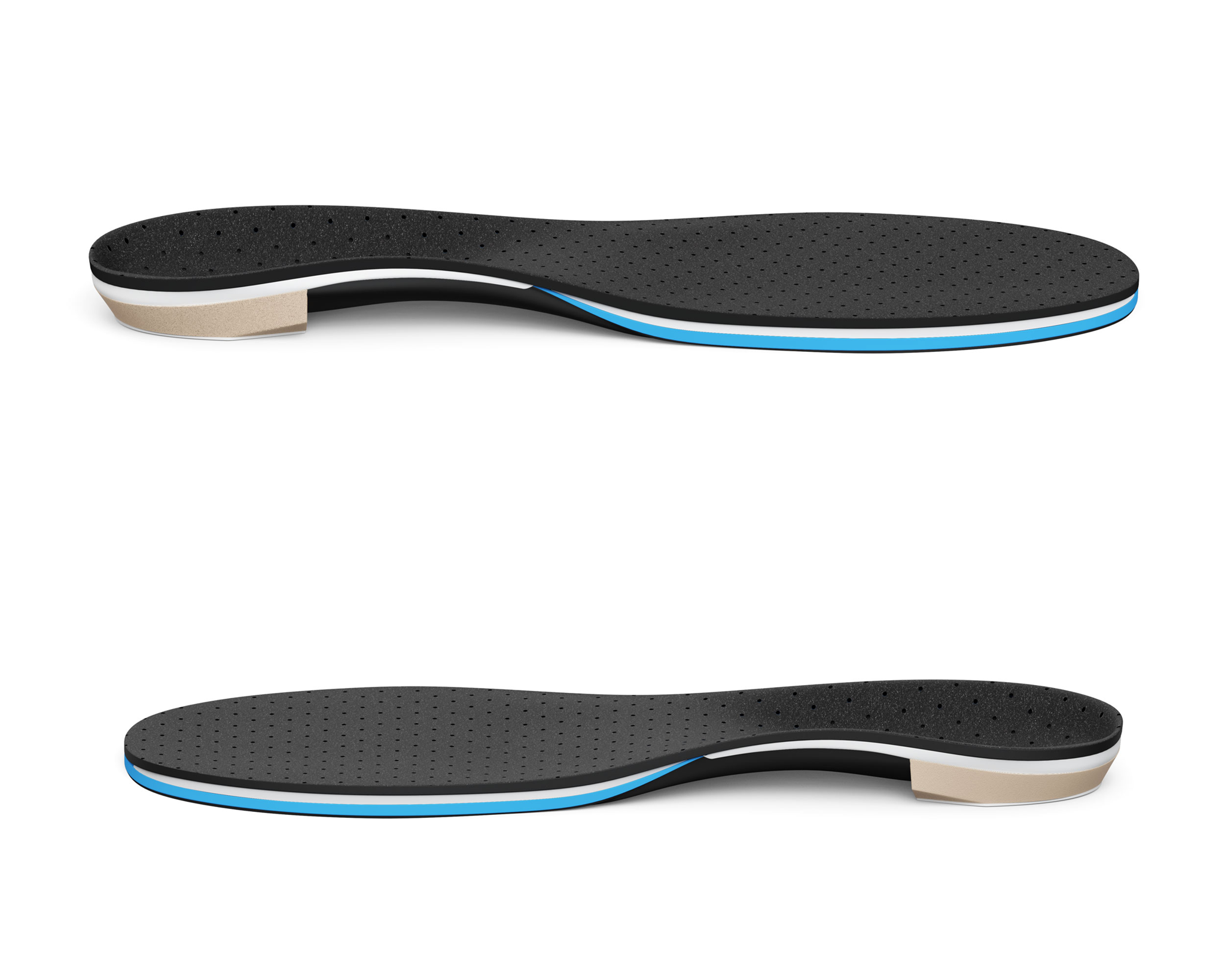

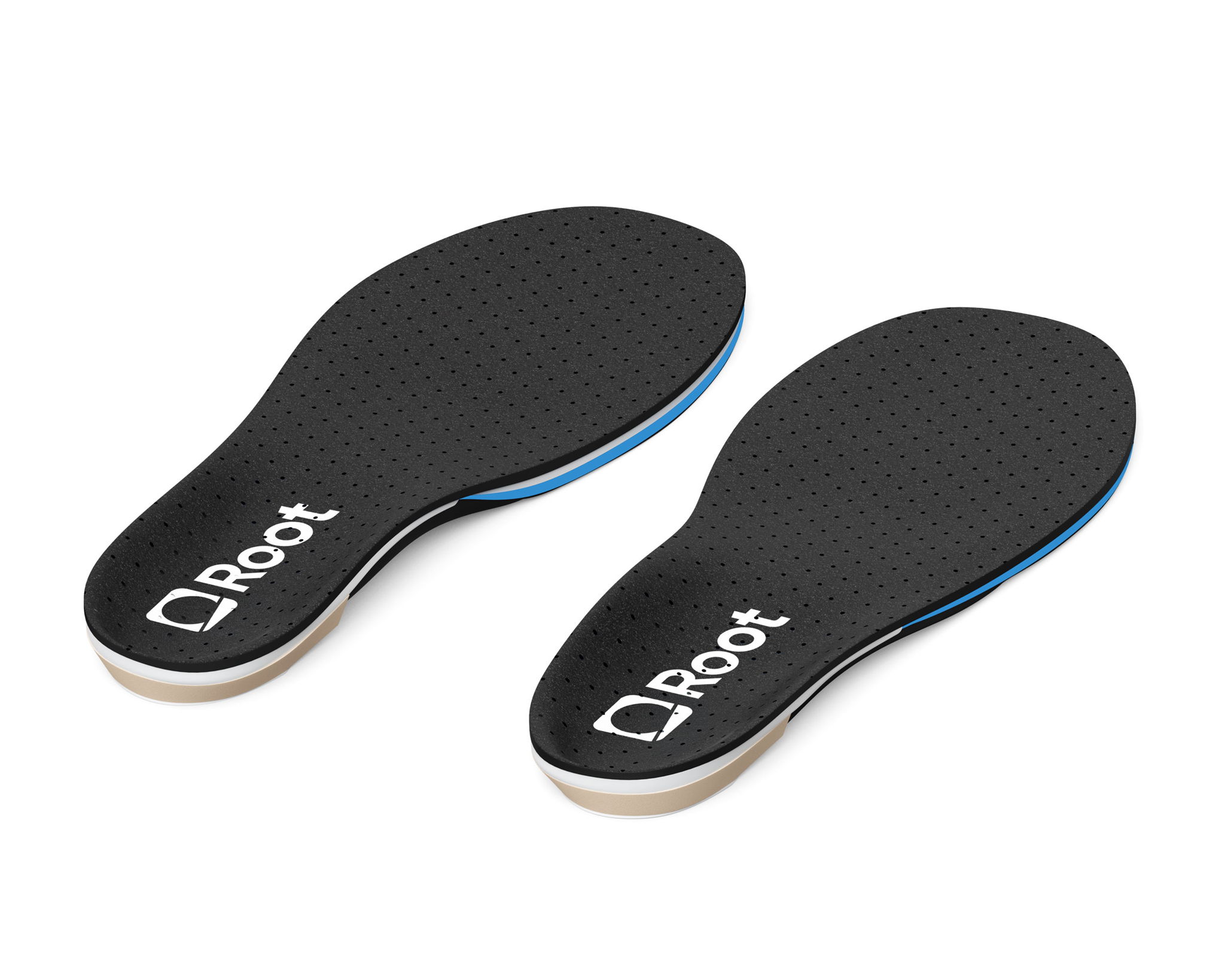

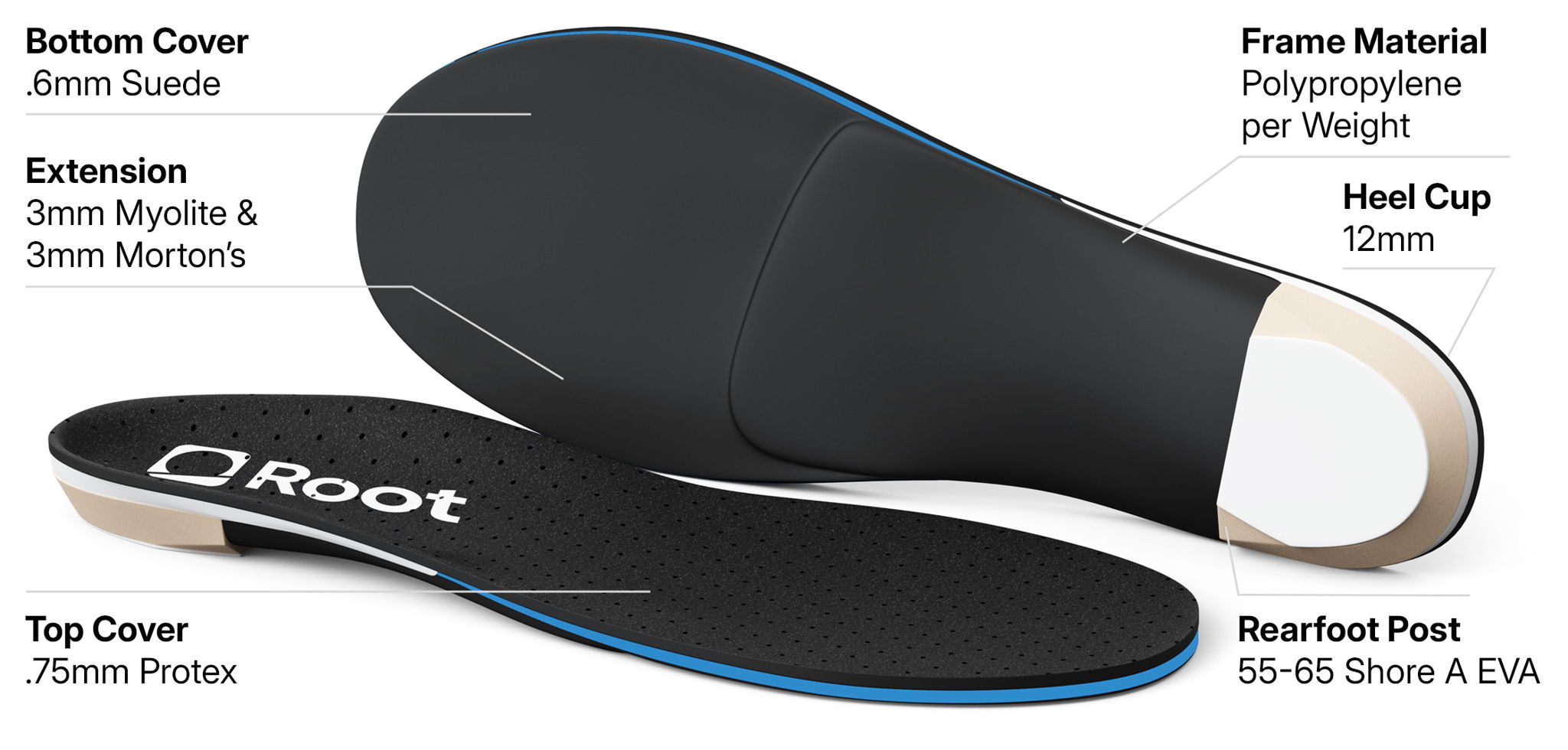

Every parameter of the P5 is set to the individual patient — material, posting, heel-cup depth, and covers are all chosen for their anatomy and gait, never an average.
Rigidity is selected per patient weight — so the shell restricts first ray movement exactly as much as that specific patient's joint degeneration requires.
Extrinsic post balanced forefoot to rearfoot — built into the positive model of the patient's foot. Reduces pronation to decrease load on the first MPJ congruent to their anatomy.
Captures the patient's calcaneus precisely as cast — providing rearfoot stability while the Morton's extension manages first ray immobilization above.
Trimmed to the patient's toe line, so contact and pressure distribution match their exact foot geometry.
Selected for shoe compatibility — keeps the device stable inside the shoe while the Morton's extension restricts first ray motion above.

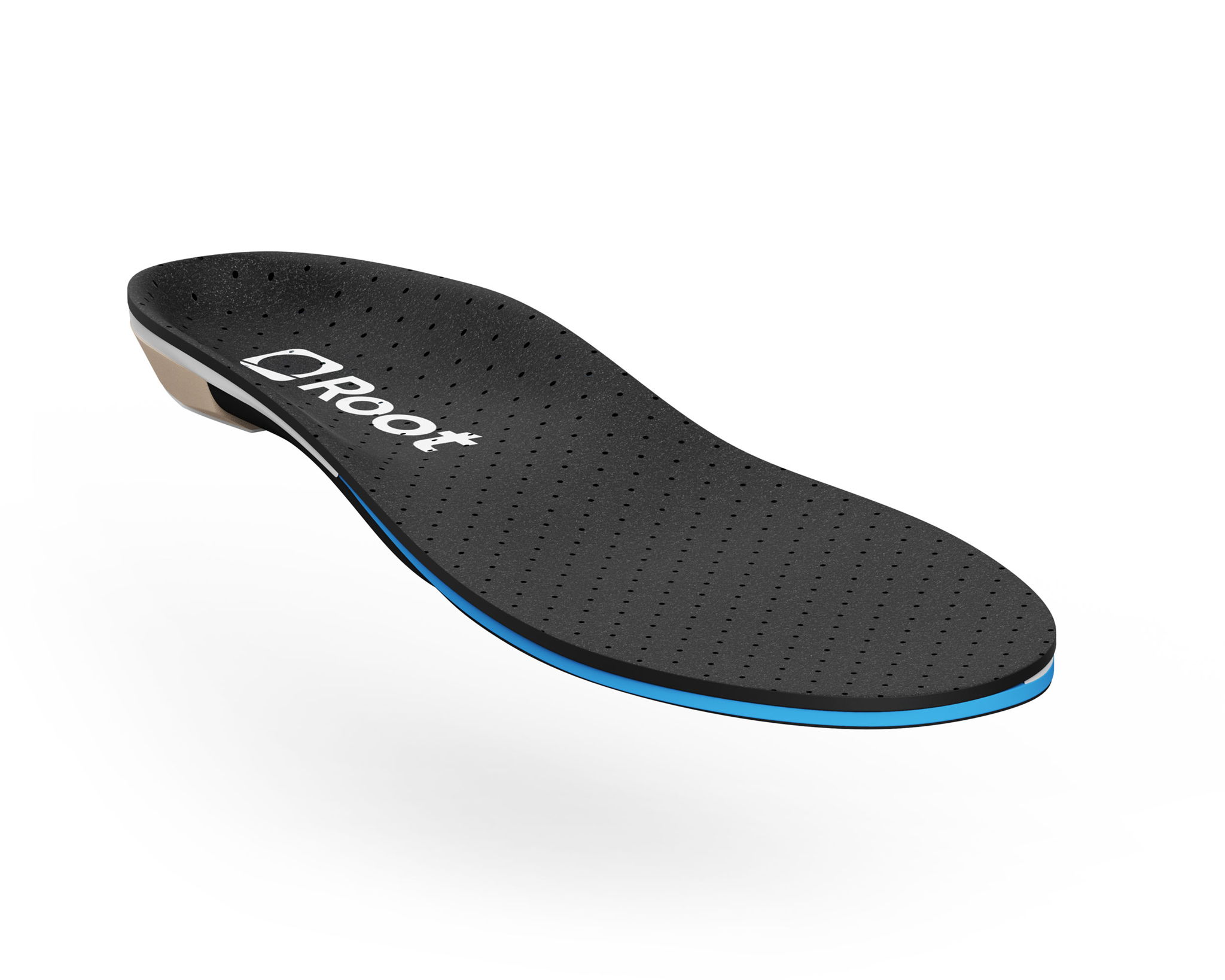

The defining feature of the P5. The Morton's extension can be integrated directly with the shell — maximizing restriction of first ray movement congruent to the patient's foot length and geometry.
What changes when the painful arc of motion is eliminated.
Immobilizing the first ray with the P5 creates cascading improvements — reducing pain at the source and correcting the compensatory patterns that load the rest of the lower extremity.
- Push-off pain eliminated — the Morton's extension bypasses the painful arc of first MPJ dorsiflexion, allowing normal gait rhythm without compensatory pivot.
- Degeneration rate reduced — each step applies less mechanical stress to the arthritic joint, slowing cartilage breakdown and preserving the window for conservative management.
- Kinetic chain protection — correcting the supinatory compensation reduces secondary loading on the lateral column, lesser metatarsals, and knee.
- Function preserved — immobilization manages pain without sacrificing gait — patients remain active while the joint is protected.
Designed to protect the joint. Limit the pain.
A 3mm Morton's extension immobilizes the entire first ray — greatly reducing movement at the first MPJ where arthritis has made dorsiflexion painful. Custom arch support decreases pronation, further reducing pressure on the joint. Fabricated from a positive model of the patient's foot, the P5 minimizes mechanical stress at the source of pain while maintaining function throughout gait.
The full picture.
Everything you need to prescribe.
- Degenerative joint disease (DJD)
- 1st metatarsophalangeal joint arthritis
- Structural hallux limitus (SHL)
- Painful hallux dorsiflexion
Recommended for
- 1st metatarsophalangeal arthritis
- 1st metatarsophalangeal joint trauma
- Late-stage hallux limitus progressing to rigidus
Designed to immobilize the first ray and reduce pressure on the first MPJ — minimizing painful dorsiflexion caused by arthritis and degenerative joint disease.
A Morton's extension greatly reduces movement of the entire first ray and can be integrated with the shell for maximum restriction. Custom arch support decreases pronation, reducing load on the first MPJ. Fabricated from a positive model of the patient's foot, fully modifiable at the practitioner's discretion.
- L3000 (UCB)
- L3010 (longitudinal/metatarsal support)
- L3020 (arch support)
- L5000 (filler)
Final coding and billing are the provider's responsibility
Delivery Time
- Standard: 2 weeks
- Expedited: Available upon request
Hallux Rigidus

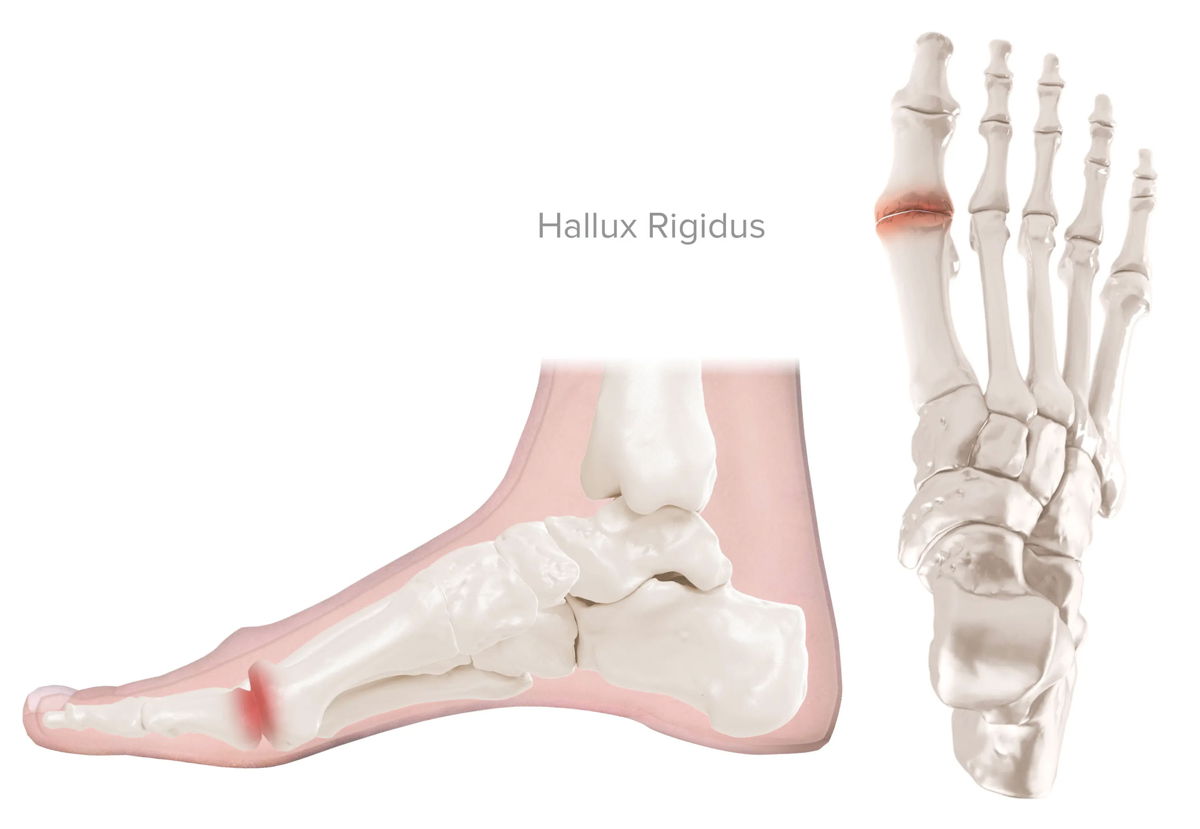

The first metatarsophalangeal joint is the hinge that drives propulsion with every step. In hallux rigidus, arthritis and structural degeneration have destroyed enough cartilage that dorsiflexion becomes not just restricted — but painful. Every push-off becomes a source of discomfort, altering gait and loading adjacent structures throughout the lower extremity.
The End Stage of a Progressive Condition
Hallux rigidus is the structural endpoint of untreated hallux limitus. As cartilage breaks down and osteophytes form, the joint loses range of motion in both active and passive movement. Unlike functional hallux limitus — where restriction occurs only under load — hallux rigidus is present at all times and worsens with activity.
Degenerative Joint Disease (DJD) — Progressive cartilage loss at the first MPJ from chronic mechanical overload. Presents as pain, stiffness, and reduced range of motion that worsens with activity and improves with rest.
1st MPJ Arthritis — Inflammatory or post-traumatic arthritis at the first metatarsophalangeal joint. Dorsiflexion becomes increasingly painful as joint space narrows and osteophytes develop on the dorsal aspect of the metatarsal head.
Structural Hallux Limitus — Both active and passive range of motion are restricted. The joint is structurally compromised — conservative treatment focuses on pain management and slowing further degeneration rather than restoring motion.
Diagnosis
Clinical assessment includes weight-bearing and non-weight-bearing range of motion testing to confirm structural restriction in both positions. X-ray under load assesses joint space narrowing, osteophyte formation, and staging of degeneration. MRI is used when soft tissue involvement or early cartilage assessment is needed.
Treatment Pathway
First-line treatment includes orthotics, NSAIDs, activity modification, and corticosteroid injection for acute flares. Custom orthotics are most effective when introduced early — immobilizing the joint to reduce pain while preserving function. If little progress is seen at 2–3 months, further imaging and specialist referral is indicated. Cheilectomy or joint fusion becomes a consideration after 6 months without meaningful recovery.
The P5 is designed to be part of the first-line response — immobilizing the first ray from the first step, protecting the joint while managing pain.
The right device
for the right diagnosis.
P5 is indicated for first MPJ arthritis, degenerative joint disease, and structural hallux limitus.
Prescribe with confidence across these conditions.
